25 m³ Left-Hand Drive Fuel Tank Truck

Fuel tank truck / refueling truck is a special vehicle for transporting gasoline and diesel. Its core configurations include chassis, tank body, European standard safety system, and oil pumping/refueling system. As a dangerous goods transport vehicle, it has very strict safety requirements.

Tank Material	Carbon Steel Q235B/Q345R: 5–6 mm
Tank Material	Aluminum Alloy 5083: 6 mm
Tank body structure	Single compartment / Multiple compartments (can hold different oils separately)
Head / Tank head	6–7 mm, turtle-back design
Manhole cover	European standard manhole
With breathing valve	Positive pressure + Negative pressure
Bottom valve	Switch
Emergency shut-off valve	Automatically shuts off within 5 seconds in case of collision / fire
Bottom loading system	Bottom loading valve, unloading valve
Overfill prevention system	Probe + socket, automatic alarm when full

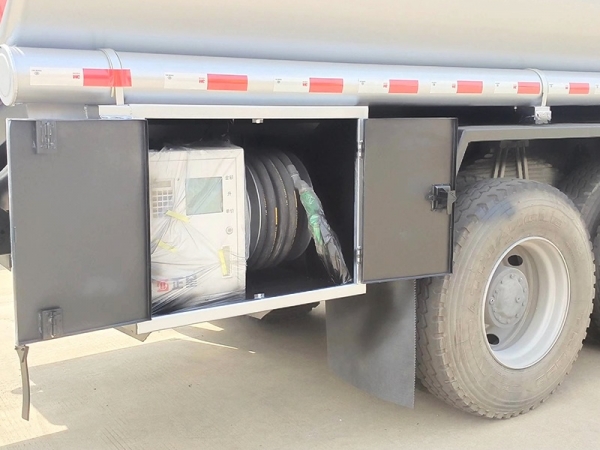

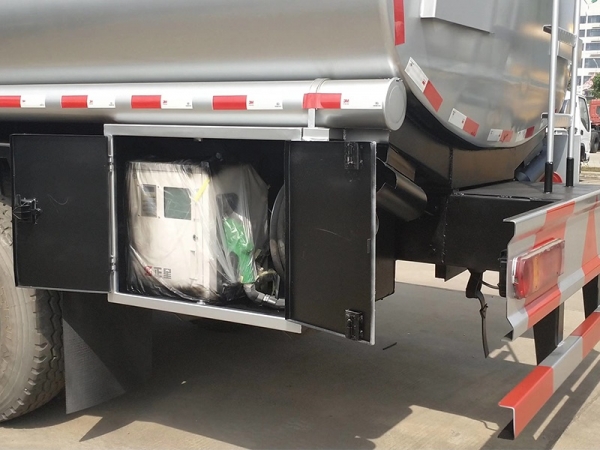

Oil pump, gear pump / self-priming pump	Pump inlet, Pump outlet
Optional	5 m automatic rewind hose reel + fuel nozzle
	Flow meter, quantitative refueling
	Others
	2 × 4 kg fire extinguishers
	2 × fuel hoses
	Toolbox, ladder, guardrails
