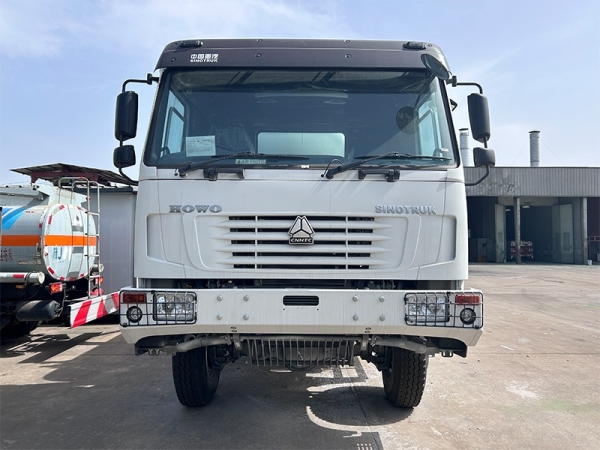

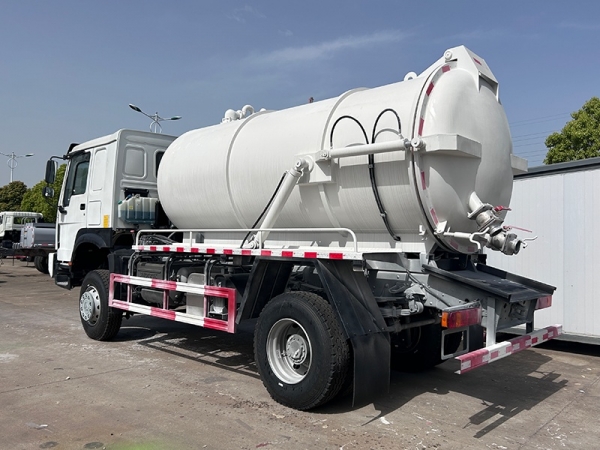

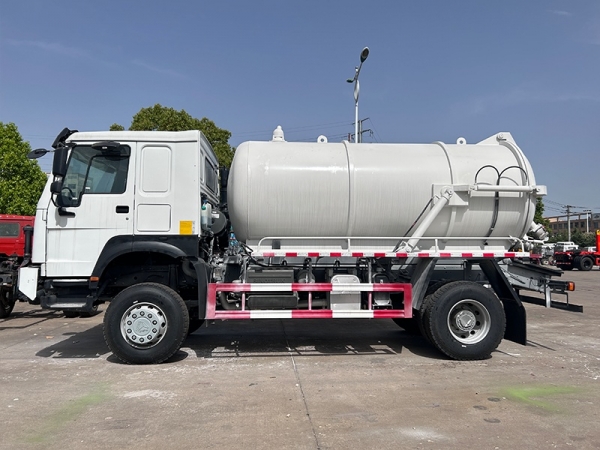

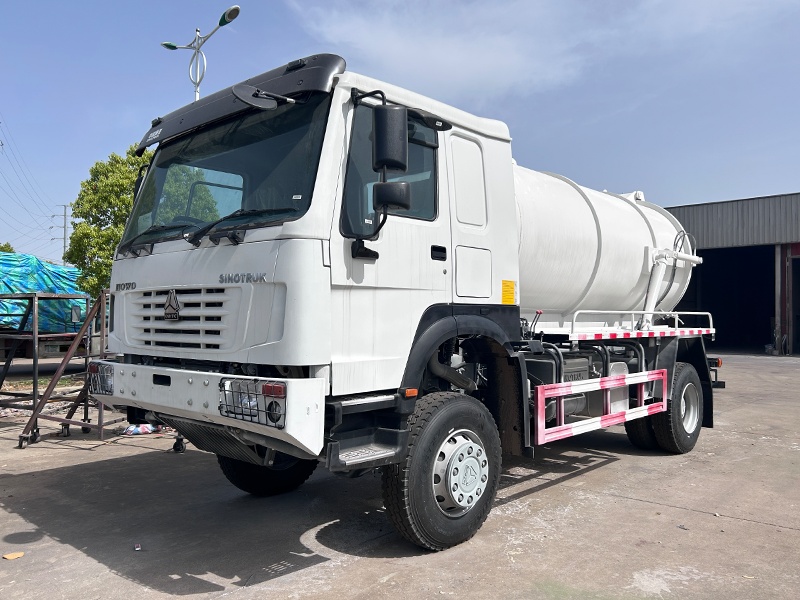

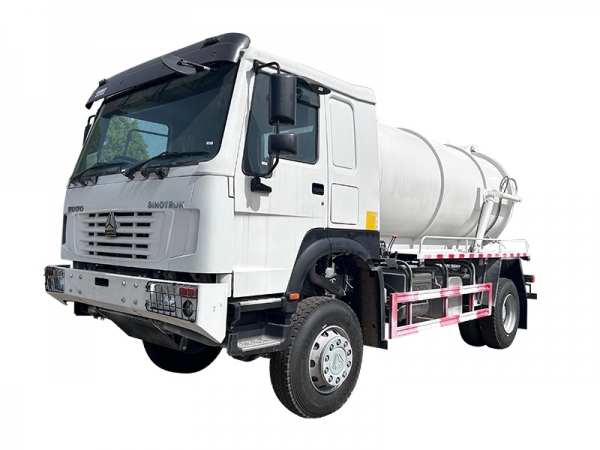

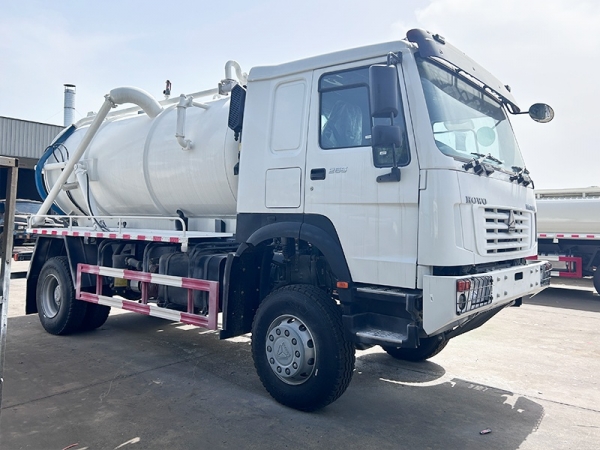

All-Wheel Drive Sewage Suction Truck

It features powerful functions and can suck up sludge, mud, sand, gravel and other materials containing solid impurities, applicable to municipal sewer maintenance and industrial desilting.

Tank body: cylindrical in shape, with higher strength and greater vacuum degree.

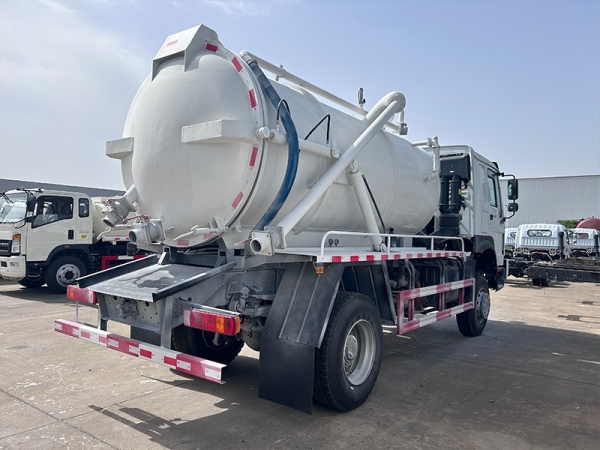

The rear cover is hydraulically openable, and the tank body can be lifted for self-dumping.

Equipped with high-power vacuum pump, hydraulic system and high-pressure cleaning device.

Its working principle also relies on negative pressure suction, but with higher vacuum degree and stronger suction force, enabling it to suck up stones, bricks and sludge blocks.

Material	Q235 carbon steel / 304 stainless steel
Thickness	5mm–8mm
Volume / Capacity	3m³ / 5m³ / 8m³ / 10m³ / 12m³ / 15m³
Structure	Cylindrical tank body with anti-slosh baffles, higher strength
Function	Hydraulic lifting and hydraulically operated rear cover for faster and cleaner sewage discharge
Vacuum Pump	Single-stage rotary vane vacuum pump / oil-circulating vacuum pump
Suction Power	Vacuum degree ≥ -0.08MPa
Suction Lift	Vertical suction lift: 8–10 meters
Sewage Suction Hose	6m–10m steel wire reinforced hose
Accessories	Anti-overflow valve (prevents sewage from entering the pump), oil-gas separator, pressure gauge, waste viewing window
